BF-VALVE CBF04-TL01 DN350 10BAR PN10 LUG

CONC. DI/WCB+PTFE/SS431/PTFE F10/12 SQR22X35

På lager : 5 stk SKU: WOD-110-003-0350
+
Category:

Beskrivelse

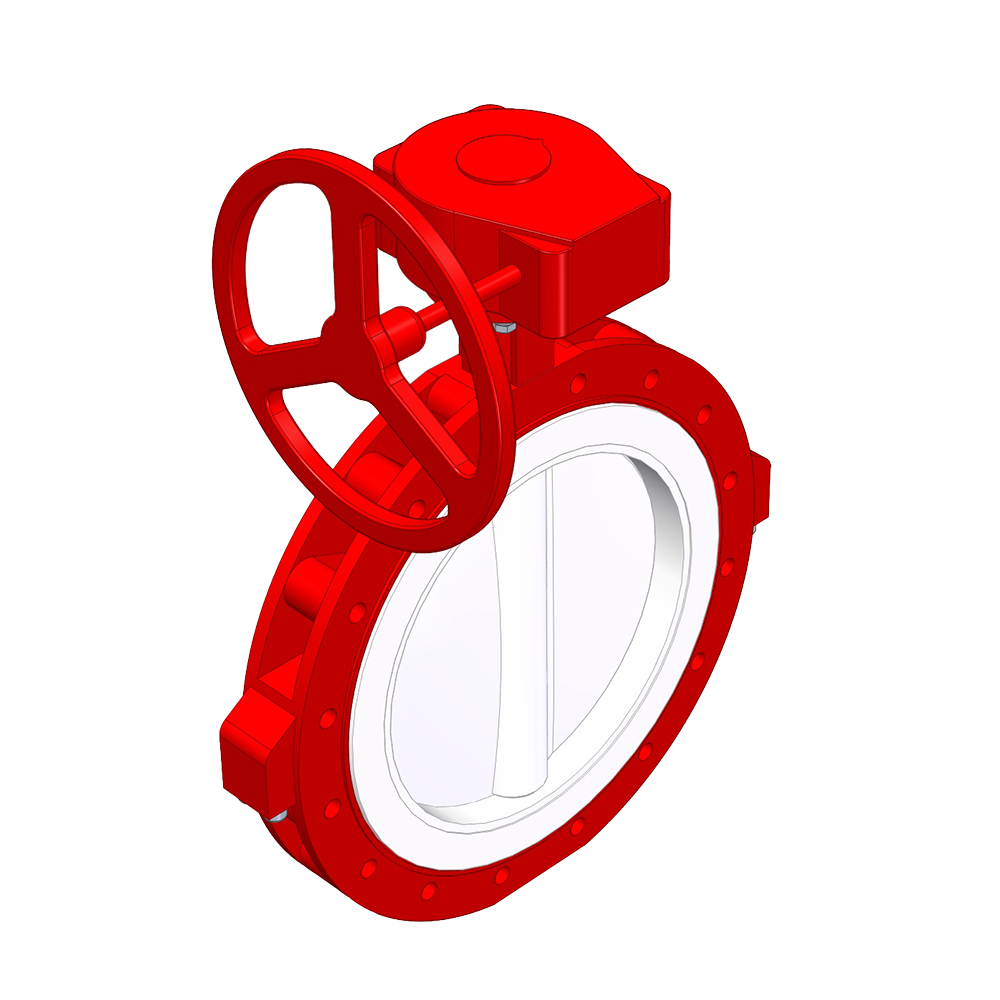

The CBF04-TL01 lug butterfly valve, designed for durability and precision, offers a practical solution for industrial flow control. It accommodates PN10/16 flanges up to DN150 and PN10 from DN200 onwards. The valve integrates a PTFE seat and disc coating for reliable sealing and longevity. Its body is coated with a protective paint to withstand corrosion. Equipped with an IP65-rated worm gear, the valve ensures easier manual operation, making it user-friendly and efficient in demanding environments.

Download Drawing
Download Brochure

Tilleggsinformasjon

Size

Valve Type

Pressure Rating

Connection

Flange Drilling

Body Material

Body Material Std.

Face To Face Distance (Mm)

Trim Material

Trim Material Std.

Spindle Material

Spindle Material Std.

Seat Material Std.

Features

Sector

Serie

Spindle Top

Spindle Top Size

Top
