+MOD. EL-ACT. HL-300 ALU-BODY C5-M COAT IP67 230V

60S/3000Nm/1,9A,36×44-F12/16(F14/QIFHL-300F14)

På restordre SKU: QIFHL-M230-300-3000
+
Category:

Beskrivelse

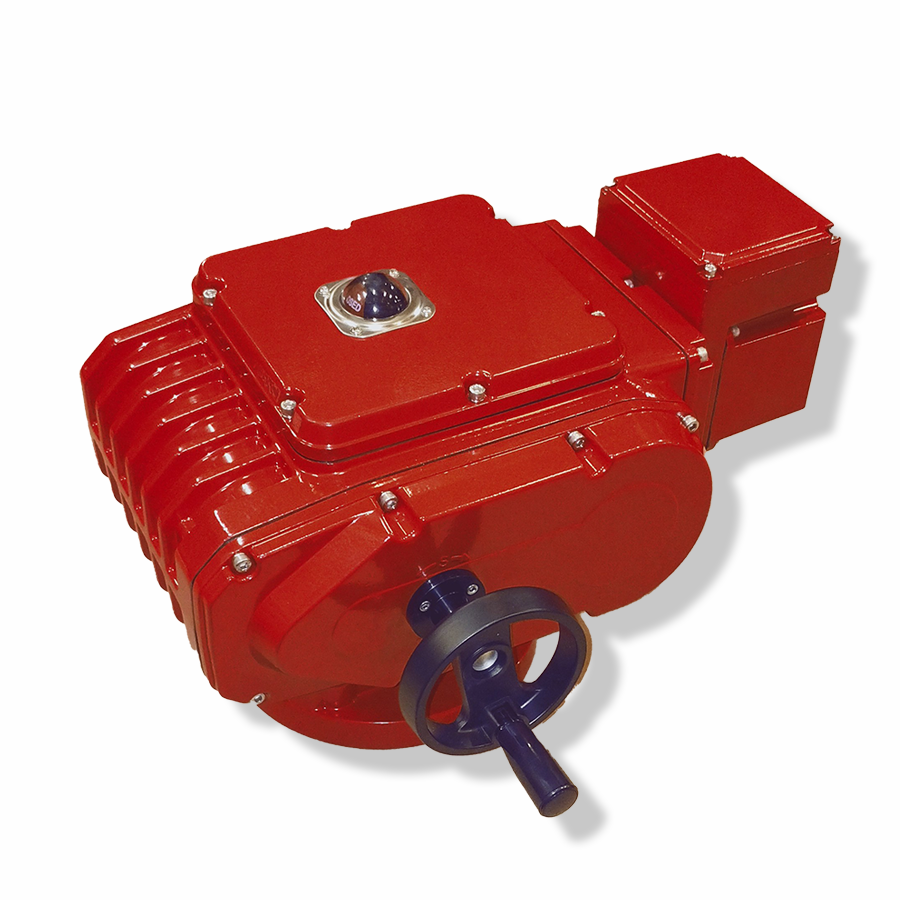

The QIFHL-M230-300-3000 Modulating Electric Actuator is a high-performance device suitable for industrial settings, featuring a sturdy aluminum body for longevity. It is designed for efficient operation with a 60-second cycle time, delivering a high torque output of 3000Nm at 1.9A. The actuator is IP67 rated, ensuring robust protection against dust and water. It operates using a 4-20mA signal with feedback capability for precise control. Additionally, it includes essential safety features like a heater, SPDT limit switch, and a manual handwheel. The actuator conforms to ISO5211 standards for compatibility with F12 and F16 valve mounting plates and a 36mm square stem.

Note: The actuator can be used with F14 valve mounting plates with optional bracket.

Download Drawing
Download Brochure

Tilleggsinformasjon

Body Material

Body Material Std.

Construction

Actuator Type

Certificates

Function

Ip Rating

Power

Torque Output

Valve Connection

Valve Spindle

Voltage
