DN125 DA ACT PN10 KNIFE GATE VALVE UNI-DIRECTION

GGG40 BODY, SS316 KNIFE AND STEM, EPOXY COAT 250Mµ

På lager : 2 stk SKU: QIF-171-002-0125
+

Beskrivelse

Ductile iron FBE coating pneumatically operated double acting Uni-direction Knife Gate Valve. Lugged and Tapped Pattern suitable for fit between PN10 flanges. With full circular bore which allows high flow capacity with low pressure drop. The extruded aluminum cylinder powered by air (min. 5.5 bar), could be also solenoid pilot operated.

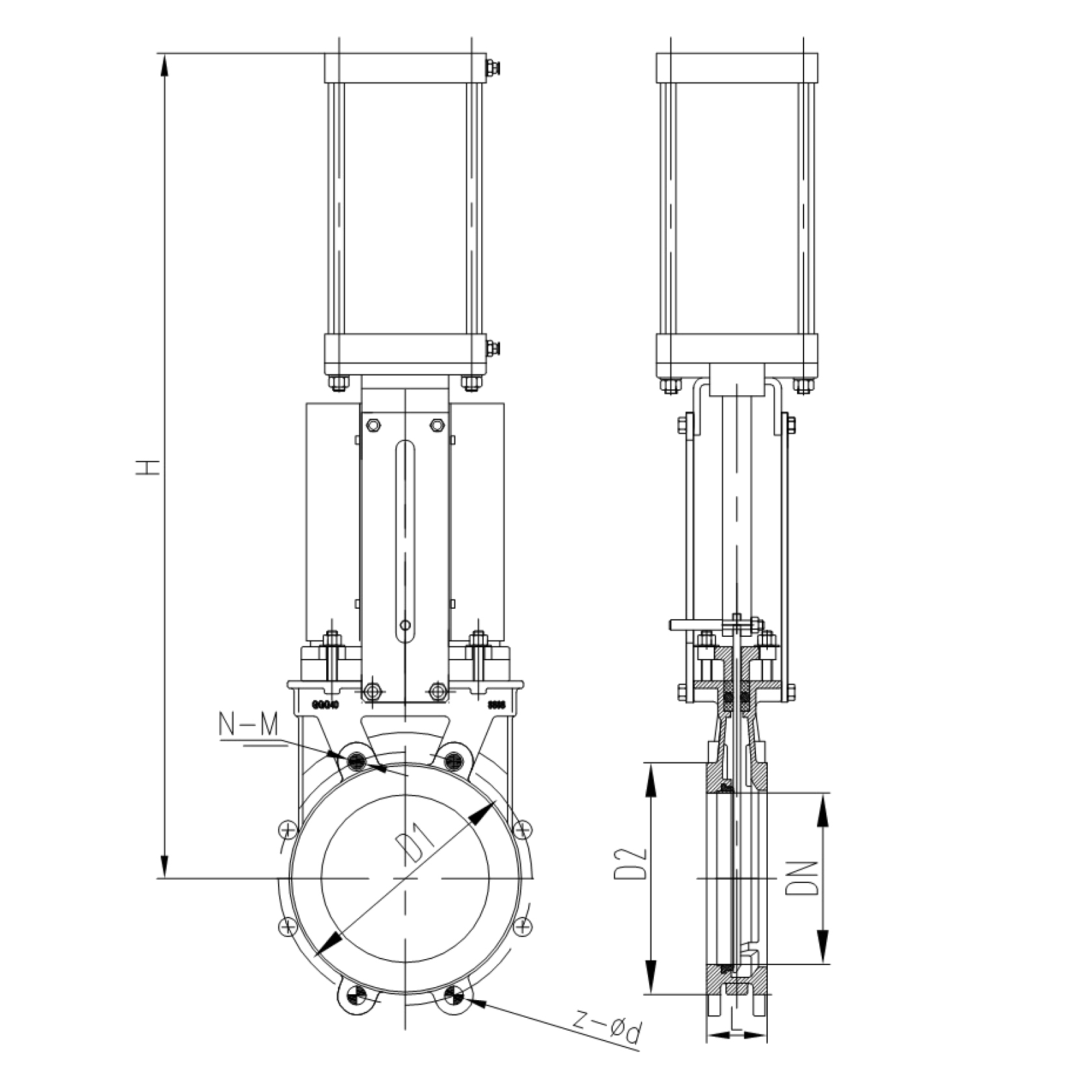

Download Drawing
Download Datasheet

Tilleggsinformasjon

Size

Valve Type

Pressure Rating

Connection

Flange Drilling

Body Material

Body Material Std.

Trim Material

Trim Material Std.

Spindle Material

Spindle Material Std.

Seat Ring Material Std.

Sector
