LT Butterfly valve DN300 LUG PN10

Name: LT Butterfly valve DN300 LUG PN10
SKU: QIF-111-NDA-0300B
Availability: BackOrder

Nutork Pneu Double Acting Actuator NKD-160

På restordre SKU: QIF-111-NDA-0300B

Beskrivelse

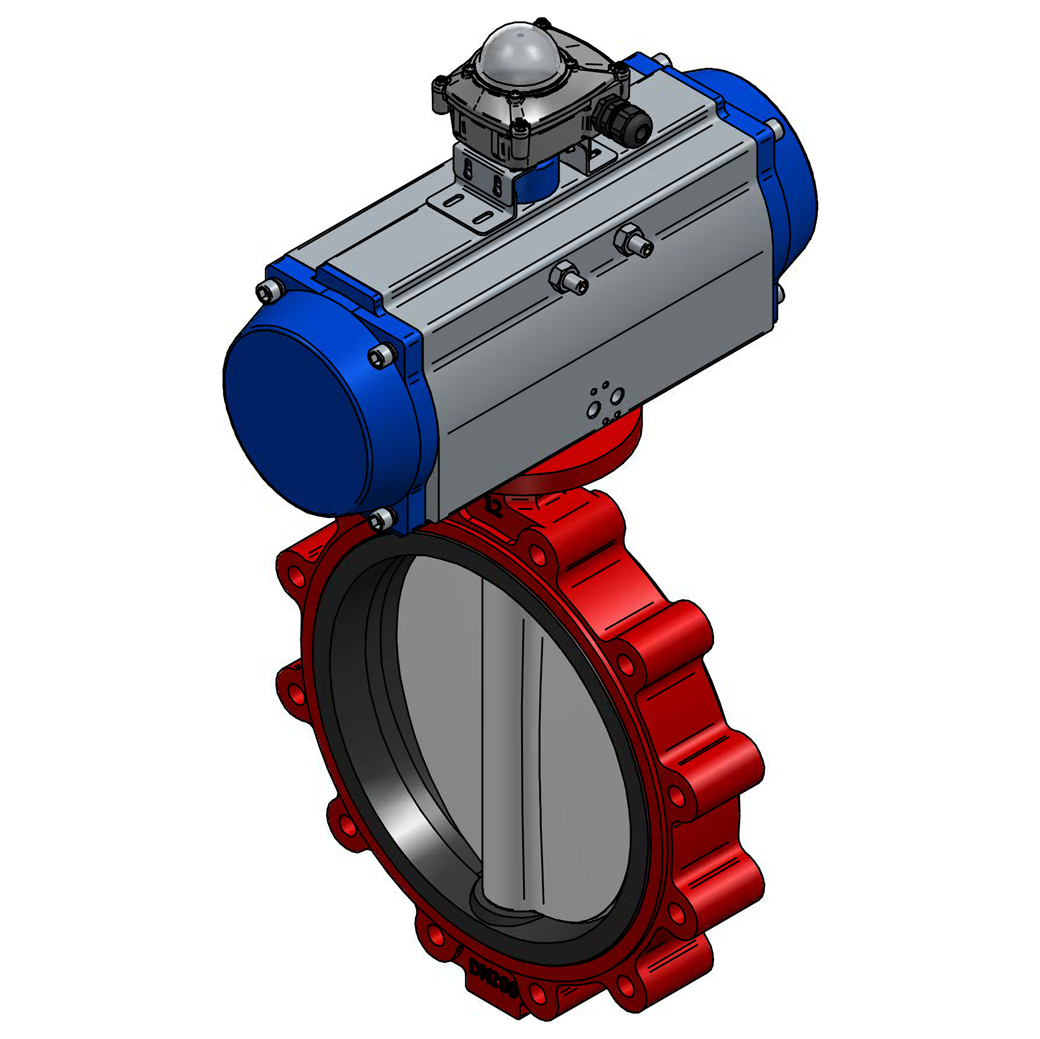

DN300 PN10 Lug Butterfly Valve with Nutork Pneumatic Double Acting Actuator NKD-160 and Switchbox CP10.

Size	300mm – 12"
Pressure Rating	10 bar
Connection	Lug
Flange Drilling	PN10
Body Material	Ductile Iron
Body Material Std.	GGG 40
Face To Face Distance (Mm)	78
Trim Material	Ductile Iron/Plastic
Trim Material Std.	GGG 40/Nylon 11
Spindle Material	Stainless Steel
Spindle Material Std.	SS 416
Seat Material Std.	EPDM
Features	Valve with Actuator and Switchbox
Sector	Industry
Spindle Top	Square
Spindle Top Size	SQR 27
Top	F12/F14
