LT Butterfly valve DN150 LUG PN10

Name: LT Butterfly valve DN150 LUG PN10
SKU: QIF-111-NDA-0150E
Availability: BackOrder

Nutork Pneu Double Acting Actuator NKD-105

På restordre SKU: QIF-111-NDA-0150E

Beskrivelse

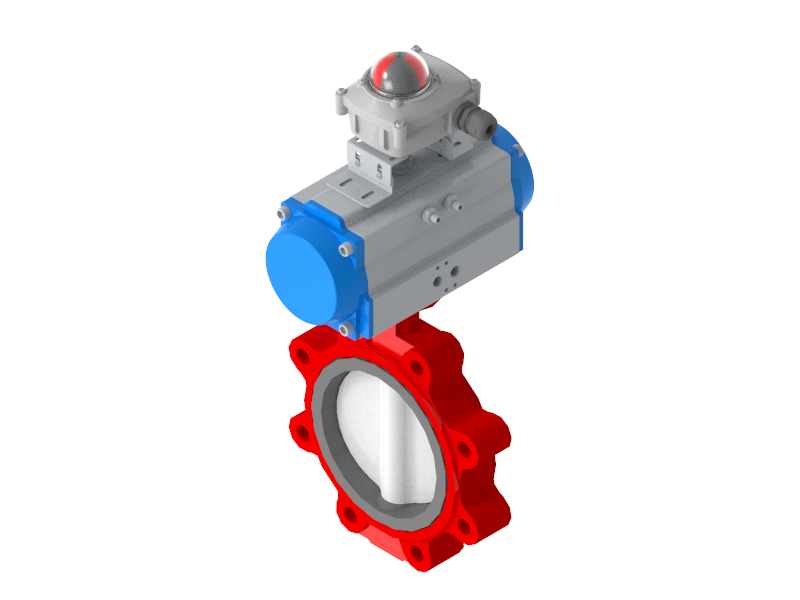

DN150 PN10 Lug Butterfly Valve with Nutork Pneumatic Double Acting Actuator NKD-105 and Switchbox CP10.

Size	150mm – 6"
Pressure Rating	10 bar
Connection	Lug
Flange Drilling	PN10
Body Material	Ductile Iron
Body Material Std.	GGG 40
Face To Face Distance (Mm)	56
Trim Material	Ductile Iron/Plastic
Trim Material Std.	GGG 40/Nylon 11
Spindle Material	Stainless Steel
Spindle Material Std.	SS 416
Seat Material Std.	EPDM
Features	Valve with Actuator and Switchbox
Sector	Industry
Spindle Top	Square
Spindle Top Size	SQR 17
Top	F07
