Beskrivelse

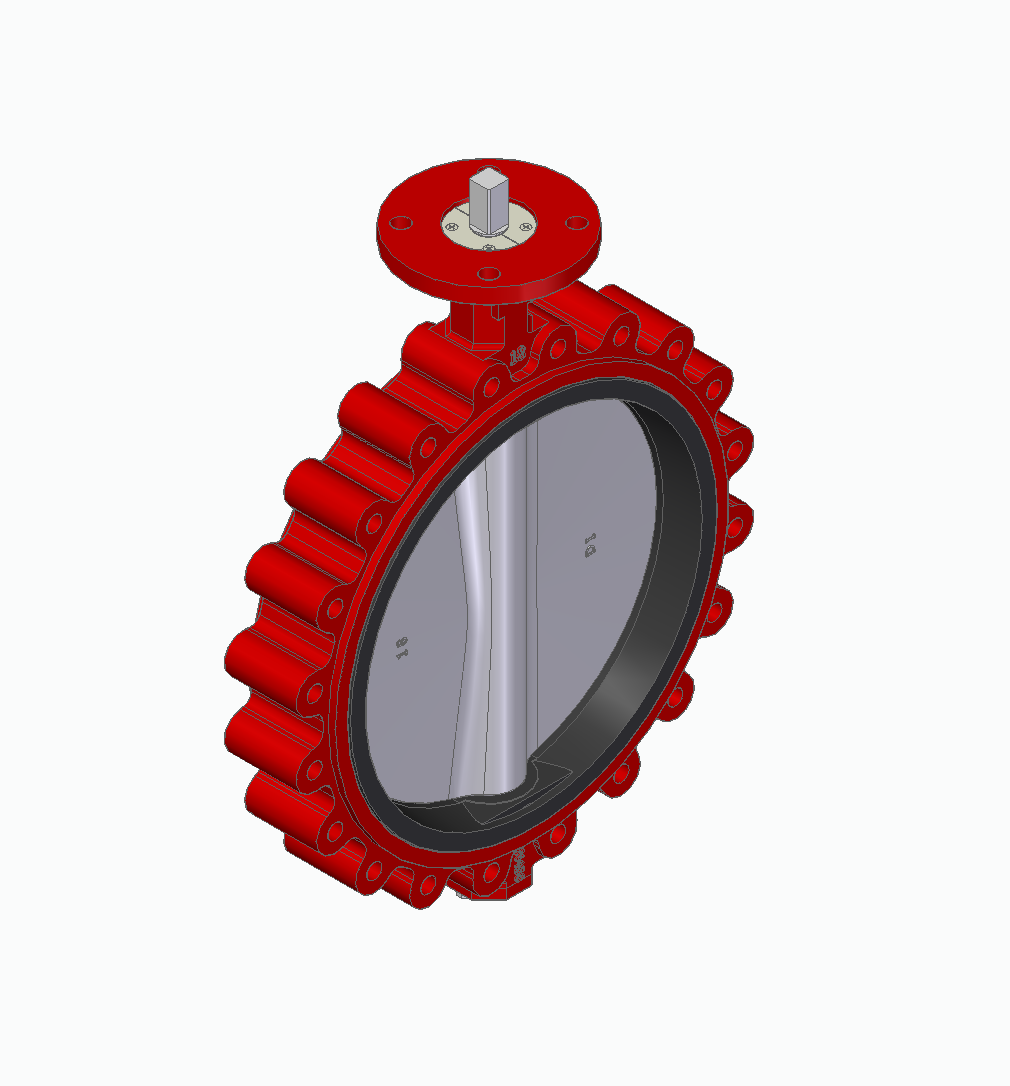

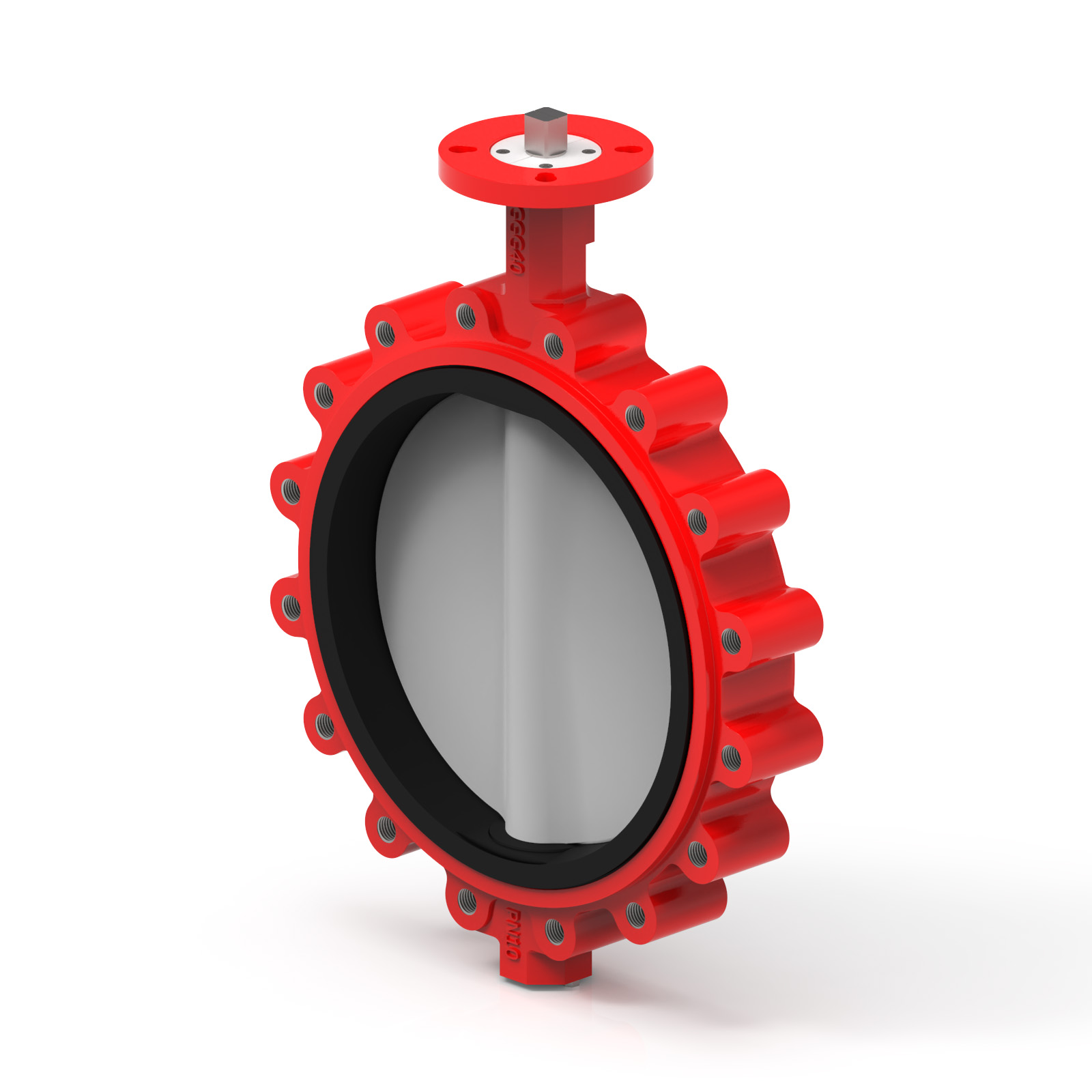

LT BUTTERFLY VALVE GGG40 DN350 LUG PN10
NYLON11 COATED DISC, SS416 SHAFT, EPDM SEAT
BARE SHAFT, ◇27×30-F12/F14 5bar ? Nm / 10Bar 393 Nm
Download Drawing
Download Technical manual EN
Download Technical manual NO
BF-VALVE DN350 PN10 LUG
CONC. GGG40/DI+NYLON/SS416/EPDM F12/14 SQ27XH30
På lager
: 6 stk
SKU: QIF-110-011-0350
Tilleggsinformasjon
| Size | |
|---|---|
| Valve Type | |
| Pressure Rating | |
| Connection | |
| Flange Drilling | |
| Body Material | |
| Body Material Std. | |
| Face To Face Distance (Mm) | |
| Trim Material | |
| Trim Material Std. | |
| Spindle Material | |
| Spindle Material Std. | |
| Seat Material Std. | |
| Sector | |
| Serie | |
| Spindle Top | |
| Spindle Top Size | |
| Top |
