BF-VALVE DN250 PN10 LUG

CONC. GGG40 C5-M/DI+NYL/SS416/EPDM F10/14 SQ22XH25

På lager : 7 stk SKU: QIF-110-011-0250B
+
Category:

Beskrivelse

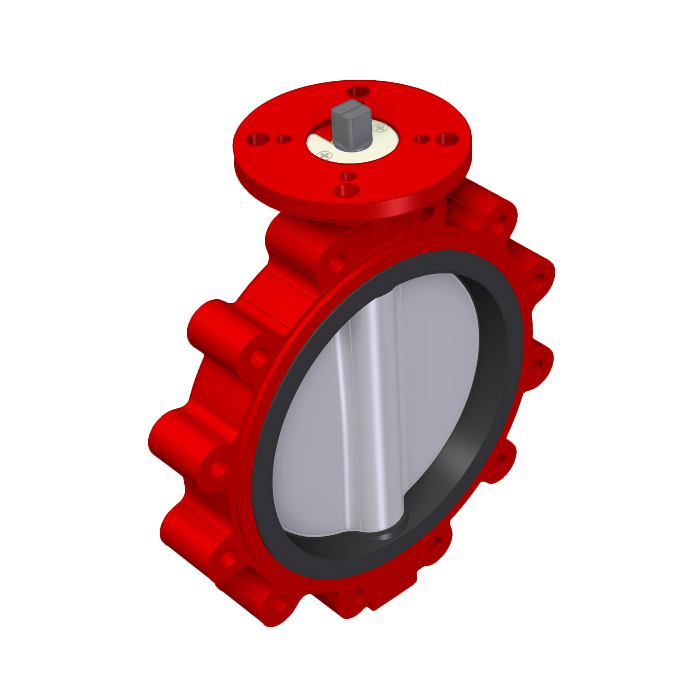

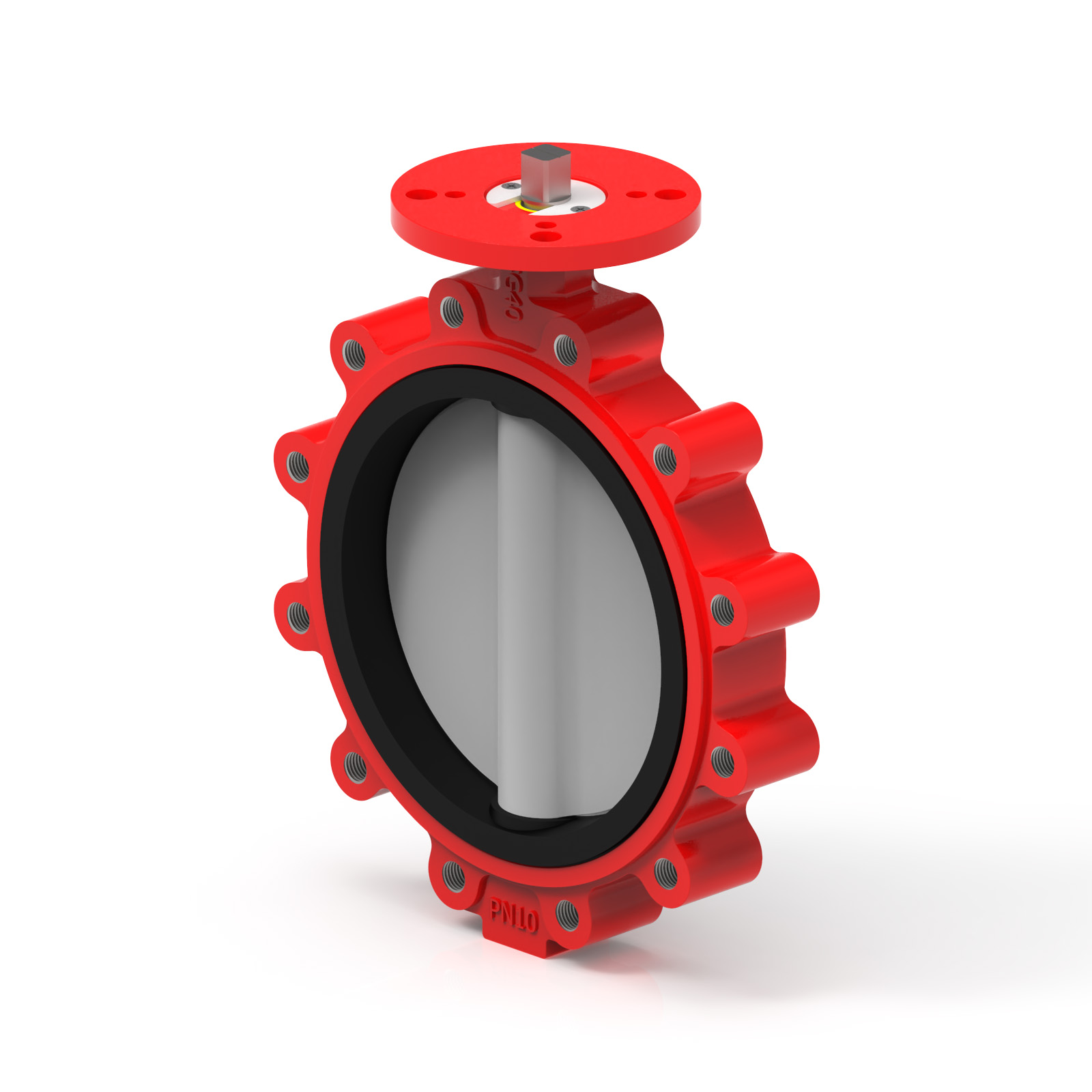

QIF-110-011-0250B is a Concentric Butterfly Valve with lugs. The size is 250mm – 10″. Its pressure rating is PN10 and the body material GGG40, Disc Material GGG40|Nylon 11. The stem material is SS416 and the seat EPDM.

Download Drawing
Download Technical manual EN
Download Technical manual NO

Tilleggsinformasjon

Size

Valve Type

Pressure Rating

Connection

Flange Drilling

Body Material

Body Material Std.

Face To Face Distance (Mm)

Trim Material

Trim Material Std.

Spindle Material

Spindle Material Std.

Seat Material Std.

Features

Sector

Serie

Spindle Top

Spindle Top Size

Top
