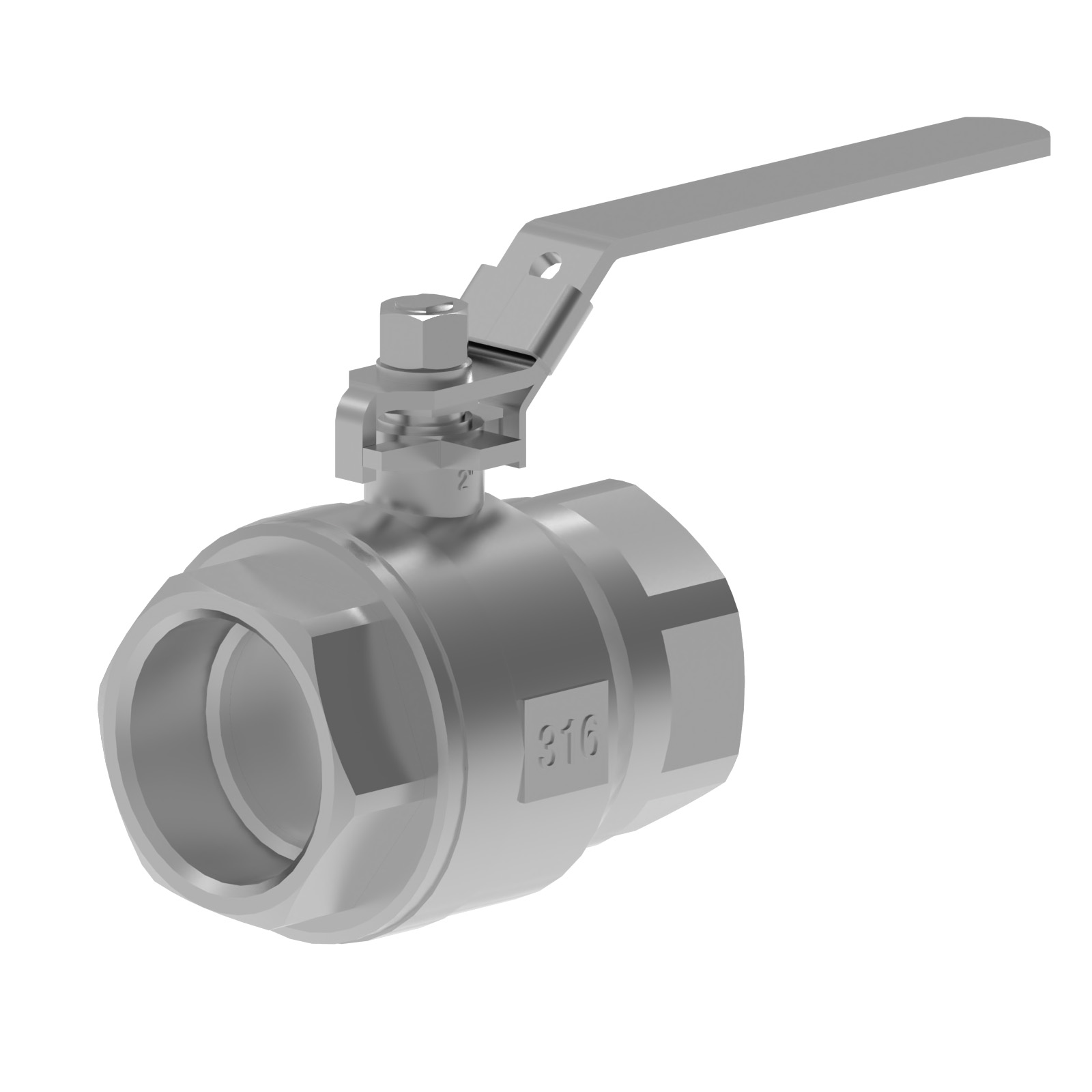

2PC BALL VALVE 2″ BSP THREADED 800PSI

Name: 2PC BALL VALVE 2" BSP THREADED 800PSI
SKU: QIF-100-001-0050C
Availability: InStock

F-BORE, SS316/SS316/PTFE, V-PACKING

På lager : 76 stk SKU: QIF-100-001-0050C

Category: Kuleventiler

Beskrivelse
Spesifikasjon

Beskrivelse

QIF-100-001-0050C is BSP, Floating Ball Valve with Size of 50mm – 2″ and 800 PSI Pressure. Body Material CF8M, Disc Material CF8M, Stem Material SS 316, Seat Material PTFE.

Download Drawing
Download Technical manual EN
Download Technical manual NO

Tilleggsinformasjon

Size	50mm – 2"
Valve Type	Floating
Pressure Rating	800 PSI
Connection	BSP
Body Material	Stainless Steel
Body Material Std.	SS 316 (CF8M)
Face To Face Distance (Mm)	120
Trim Material	Stainless Steel
Trim Material Std.	SS 316 (CF8M)
Spindle Material	Stainless Steel
Spindle Material Std.	SS 316 (CF8M)
Seat Material Std.	PTFE (Teflon)
Sector	Industry
Serie	QIF BV 001B
Trim Type	Full Bore
