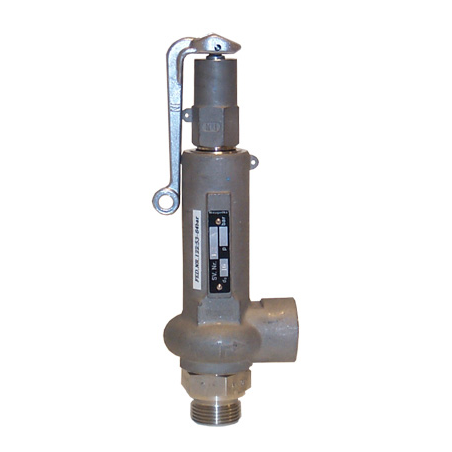

ANGLE SAFETY VALVE GGG/Steel, G 3/4″ x 1″

NIEZ type 10.1 A, size II, d0 16 mm, 8 bar

På lager : 4 stk SKU: PER10056B
+

Beskrivelse

PER10056B valve has inlet of 20mm – 3/4″ and outlet of 25mm – 1″. Valve has BSP Male x Female connection. Body GGG40.3 with trim of 430F (1.4104). Valve has Open Lever and can be used -10 to 280°C temperature range. PER10056B valve are approved with TUV|PED.

Download Drawing
Download Datasheet

Tilleggsinformasjon

Pressure Rating

Connection

Body Material

Body Material Std.

Trim Material

Trim Material Std.

Features

Certificates

Inlet Size

Max Back Pressure

Medium

Outlet Size

Sector

Serie

Set Pressure

Temperature Range
