Name: ELECTROHYDRAULIC ACTUATOR | REGULATED | 3-FAS
SKU: MILOV153596
Availability: BackOrder

Beskrivelse

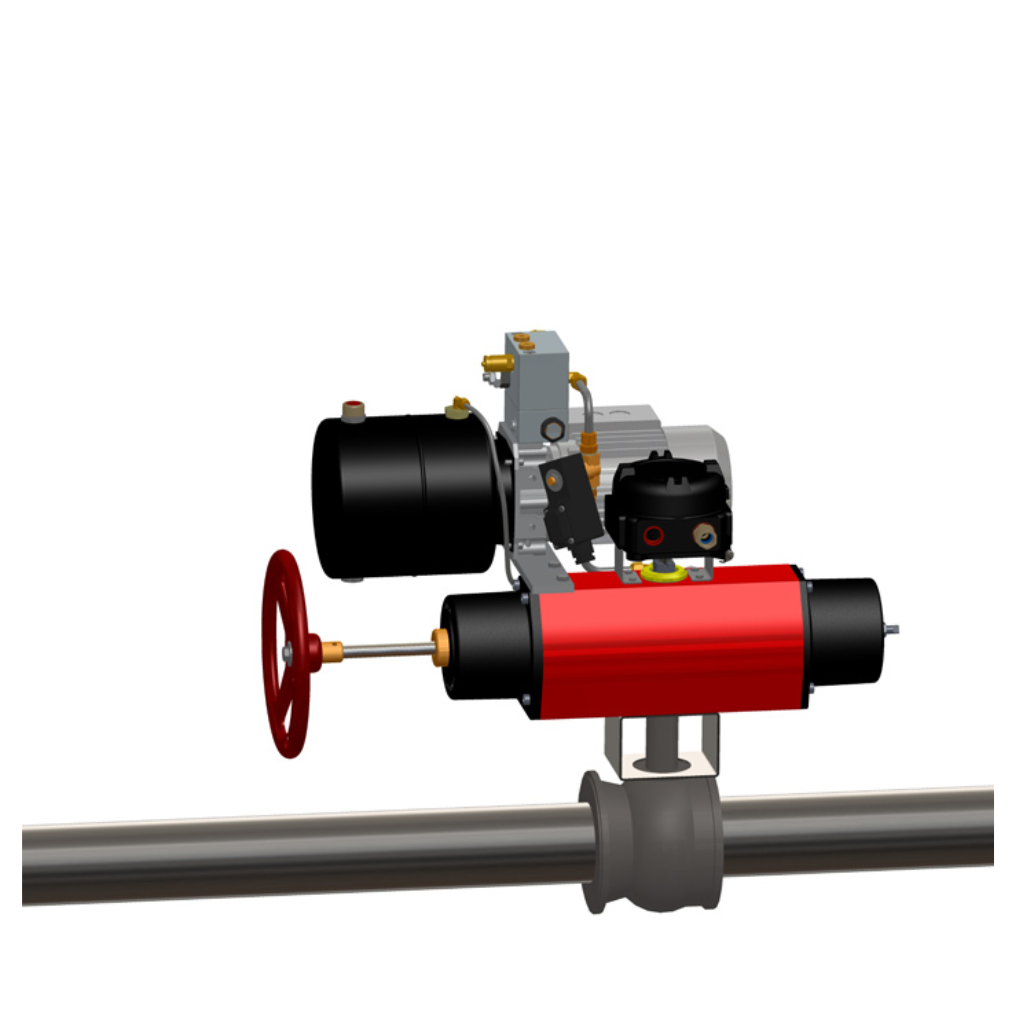

MILOV153596 is a Electro-Hydraulic Horizontal Piping Positioning actuator. Body is made of Anodized Aluminium, Epoxy Coated. Conection with valve is F10|F12 and for SQR 22 spindle size.

Download Datasheet

Tilleggsinformasjon

Body Material	Aluminium
Body Material Std.	Anodized
Max Pressure	10 bar
Construction	Piping (Horizontal)
Actuator Type	SR M
Air Torque	355 Nm @ 8 Bar Hydraulic
Certificates	ATEX/PED
Function	Quarter-Turn/Modulating
Instrument Connection	80×30 mm
Pneumatic Connector	NAMUR 1/4" BSP
Power	Electro-Hydraulic
Spring Torque	175 Nm @ 7 Bar
Valve Connection	F10/F12
Valve Spindle	SQR 22
