*KULEVENTIL FIG.80-100 BSP STÅL 3/4″

Name: *KULEVENTIL FIG.80-100 BSP STÅL 3/4"
SKU: MAR01121
Availability: BackOrder

KARBONSTÅL/PTFE

På restordre SKU: MAR01121

Category: Kuleventiler

Beskrivelse
Spesifikasjon

Beskrivelse

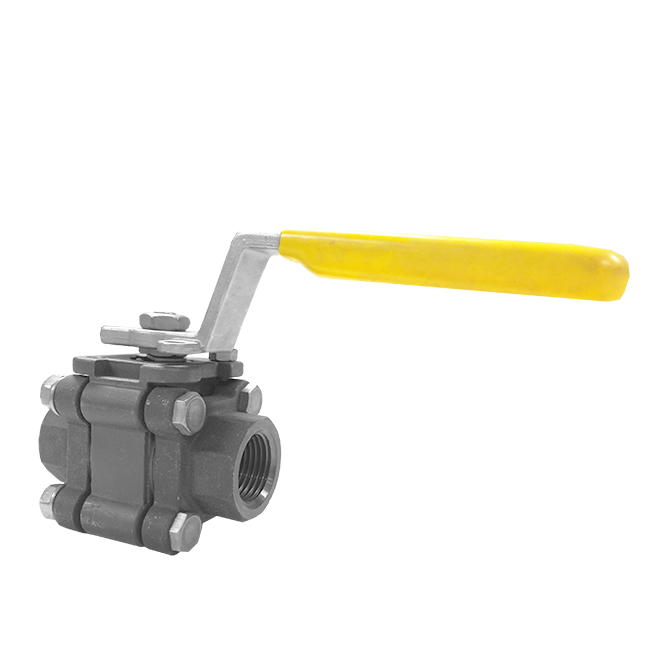

MAR01121 is Full Bore Ball Valve with Size of 3/4in – 20mm and PN70 Pressure. Body Material Carbon Steel ASTM A216 WCB, Ball Material Stainless Steel ASTM A351 Gr. CF8M, Spindle Material Stainless Steel ASTM A351 Gr. CF8M, Seat Material Plastic-based PTFE.

Download Brochure

Tilleggsinformasjon

Size	20mm – 3/4"
Valve Type	Floating
Pressure Rating	1000 PSI
Connection	BSP
Body Material	Carbon Steel
Body Material Std.	C 22
Face To Face Distance (Mm)	80
Trim Material	Stainless Steel
Trim Material Std.	SS 316 (CF8M)
Spindle Material	Stainless Steel
Spindle Material Std.	SS 316 (CF8M)
Seat Material Std.	PTFE (Teflon)
Certificates	(BS/DIN EN 10204 ) (3.1) (3.1B)
Sector	Industry
Serie	MAR 80-10
Spindle Top	Double D
Spindle Top Size	DD 10 x 6
Top	F03
Trim Type	Full Bore
