BFV BRAY S20-T272 DN40 PN10 MULTIDRILL WAFER

CONC. AL/TI/TI/BUNA-N F05 DD8X10

På restordre SKU: JSCBU040
+
Category:

Beskrivelse

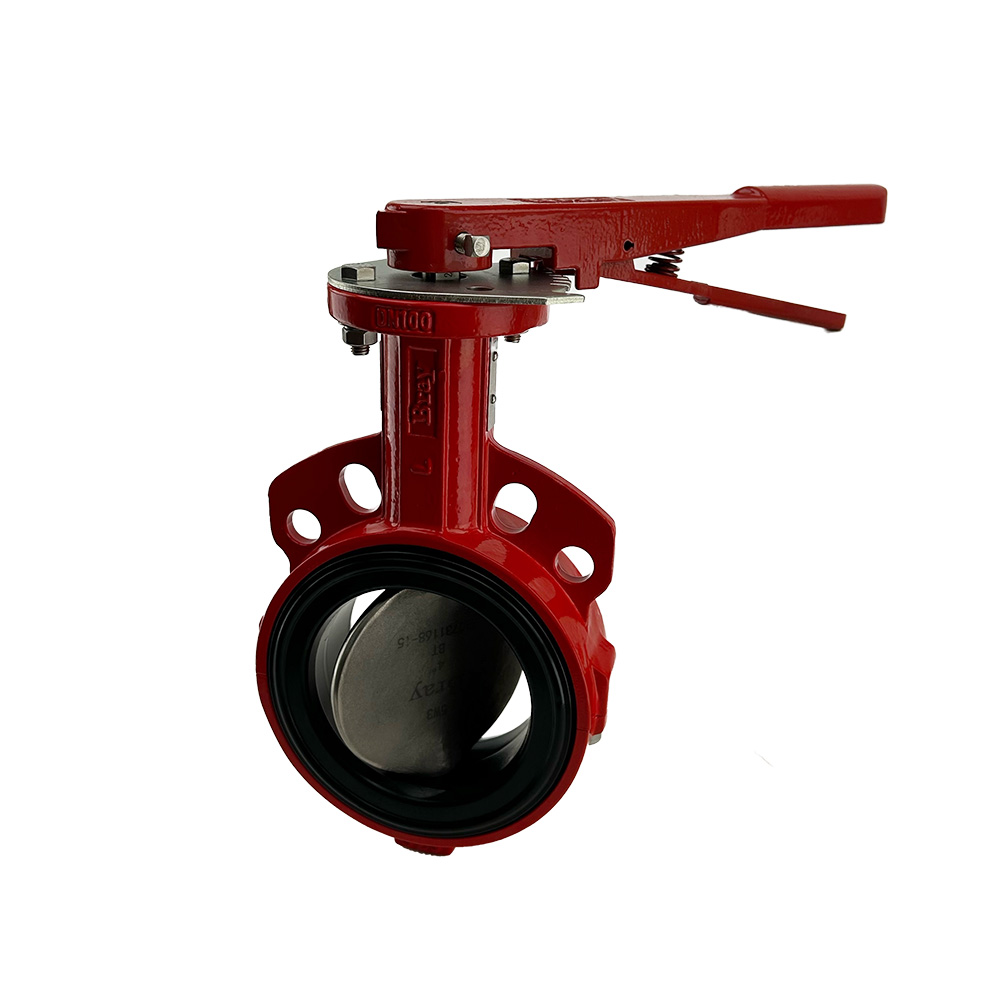

JSCBU040 is Wafer, Concentric Butterfly Valve with Size of 1 1/2in – 40mm and PN10 Pressure. Body Material Aluminum ASTM B26, Disc Material Titanium ASTM B348 Gr.2, Stem Material Titanium ASTM B348 Gr.2, Seat Material Rubber-based NBR.

Download Drawing
Download Technical manual EN

Tilleggsinformasjon

Size

Valve Type

Pressure Rating

Connection

Flange Drilling

Body Material

Body Material Std.

Face To Face Distance (Mm)

Trim Material

Trim Material Std.

Spindle Material

Spindle Material Std.

Seat Material Std.

Features

Sector

Serie

Spindle Top

Spindle Top Size

Top
