Beskrivelse

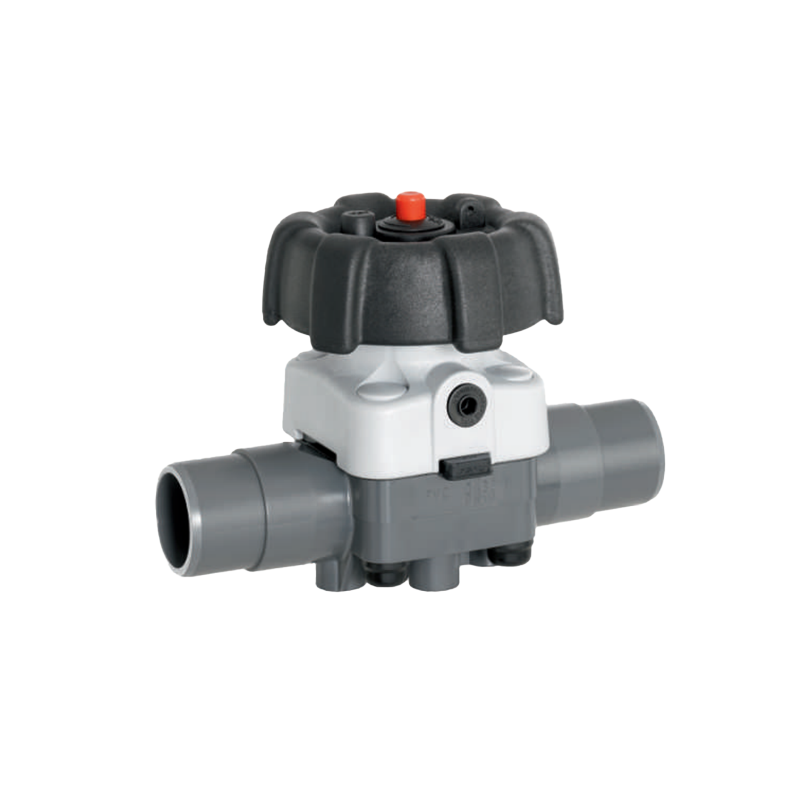

The 2/2-way diaphragm valve has a low maintenance plastic actuator and is manually operated. An integrated optical position indicator is standard. The high-flow valve body provides compact dimensions at high flow rates.
Type: R677: Diaphragm valve, manually operated, plastic handwheel, optical position indicator
DN: 40: DN 40
Body configuration: D: 2/2-way body
Connection type: 4: Flanges EN 1092 / PN10 / form B, Face to face EN 558, series 1, ISO 5752, basic series 1
Valve body material: 71: Inliner PP-H, grey, outliner PP, reinforced
Diaphragm material: 29: EPDM
Control function: 0: Manually operated
Actuator version: HD: Operator size HD (diaphragm size 40)
Diaphragm size: 40: Diaphragm size 40
