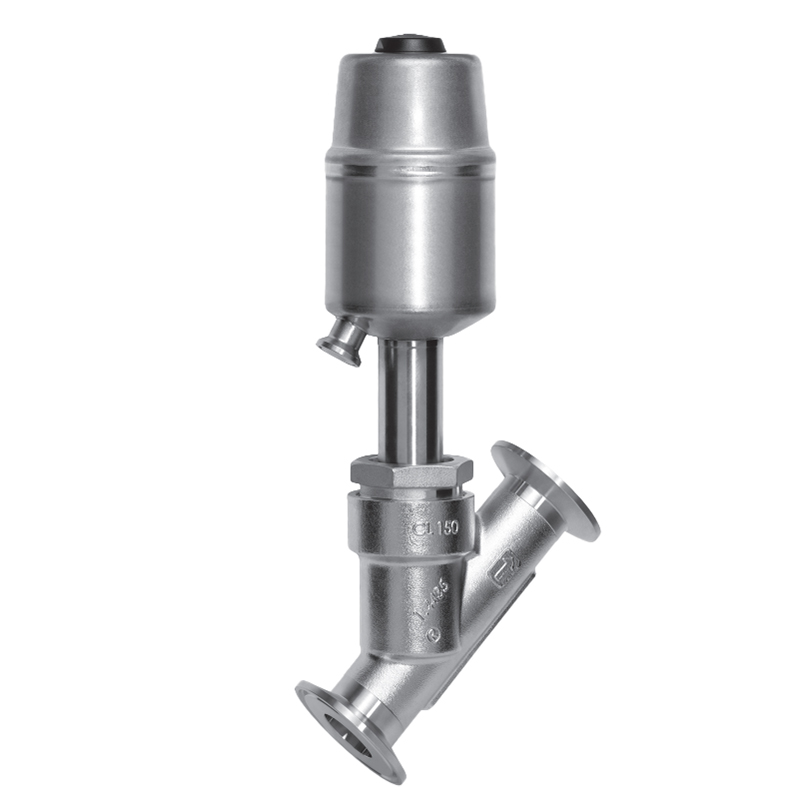

PNEU. ANGLE SEAT GLOBE VALVE 550 DN40 SPIGOT

NC 1.4435/PTFE ACTUATOR SIZE 3M1

På restordre SKU: GEM-88245733
+
Category:

Beskrivelse

The 2/2-way angle seat globe valve has a low-maintenance stainless steel piston actuator and is pneumatically operated. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage.

Type: 550: Angle seat globe valve, pneumatically operated, stainless steel piston actuator
DN: 40: DN 40
Body configuration: D: 2/2-way body
Connection type: 60: Spigot ISO 1127 / EN 10357 series C
Valve body material: 34: 1.4435, investment casting
Seat seal: 5: PTFE
Control function: 1: Normally closed (NC)
Actuator version: 3M1: Actuator size 3M1

Download Datasheet
Download Technical manual EN

Tilleggsinformasjon

Size

Valve Type

Pressure Rating

Connection

Body Material

Body Material Std.

Face To Face Distance (Mm)

Max Pressure

Construction

Features

Max Temperature

Seal Material Std.

Sector
