PN. ACTUATOR 92DA-93, DD13X19MM | F05/07

PN16, 115Nm @5.5, NAMUR VDI/VDE 3845, BUNA-N SEALS

På lager : 7 stk SKU: BRA80003
+
Category:

Beskrivelse

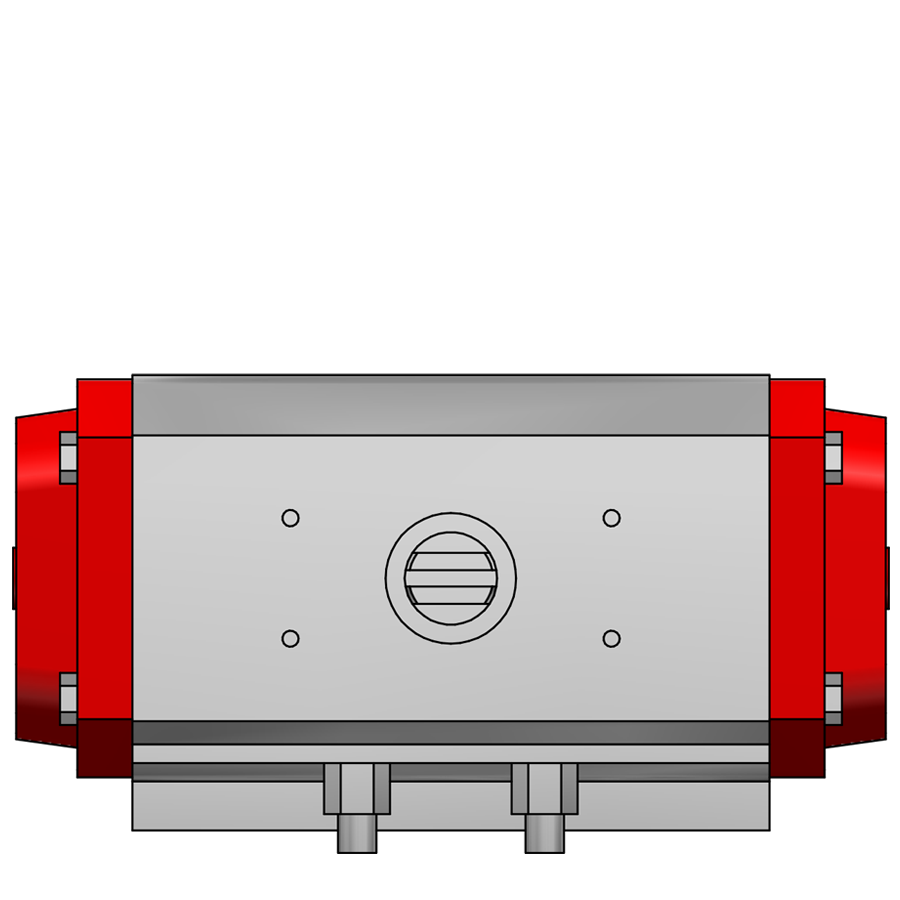

BRA80003 is a Pneumatic Rack & Pinion Rotation 90°, 135° & 180° actuator. Body is made of Extruded Aluminum Alloy, Anodized 316 Stainless Steel. Conection with valve is F05|F07 and for DD 13 x 19 spindle size.

Download Drawing
Download Brochure
Download Technical manual EN

Tilleggsinformasjon

Body Material

Body Material Std.

Max Pressure

Construction

Actuator Type

Air Torque

Function

Instrument Connection

Pneumatic Connector

Power

Valve Connection

Valve Spindle
