Handleliste –

BFV S40-T0H8 DN100 PN10/16/ANSI150 WAFER

DBL-ECC SS/SS/17-4 PH/RTFE F07 DD11X16

På lager : 2 stk SKU: BRA02437C
+
Category:

Beskrivelse

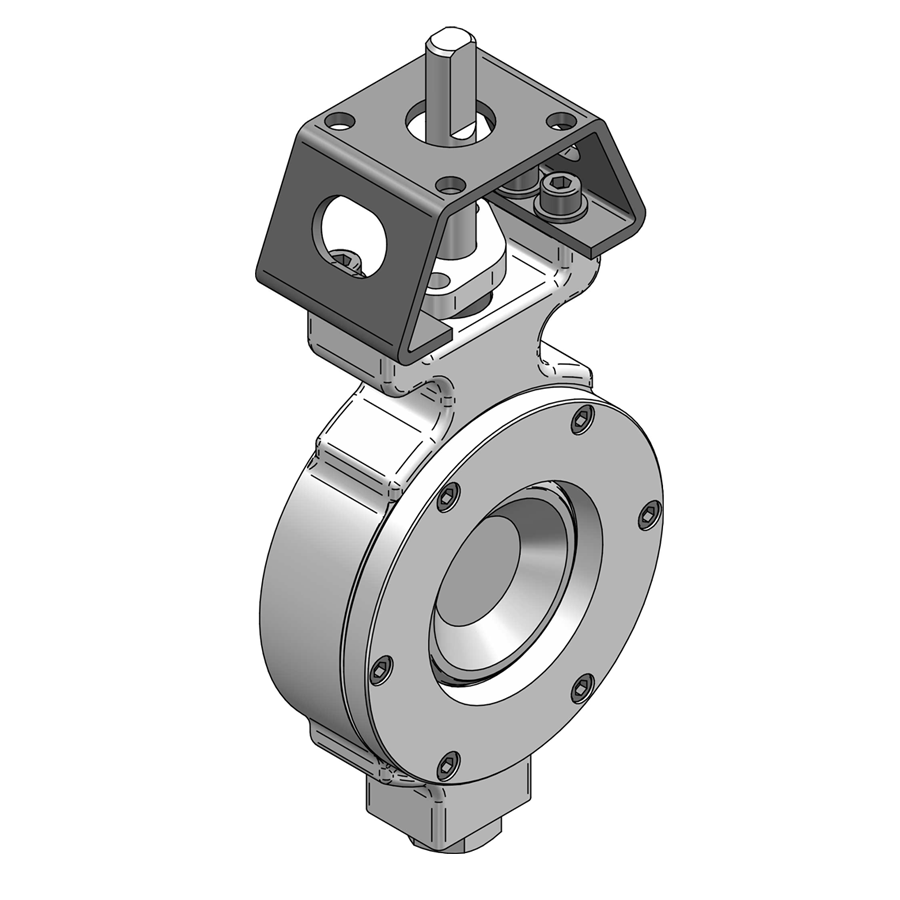

BRA02437C is Wafer, Double Eccentric Butterfly Valve with Size of 4in – 100mm and PN16 Pressure. Body Material Stainless Steel ASTM A351 CF8M, Disc Material Stainless Steel ASTM A351 CF8M, Stem Material Stainless Steel 17-4ph, Seat Material Plastic-based RTFE.

Download Drawing
Download Brochure
Download Technical manual EN
Download Certificate

Tilleggsinformasjon

Size

Valve Type

Pressure Rating

Connection

Flange Drilling

Body Material

Body Material Std.

Face To Face Distance (Mm)

Trim Material

Trim Material Std.

Spindle Material

Spindle Material Std.

Seat Material Std.

Features

Fire Safe

Sector

Serie

Spindle Top

Spindle Top Size

Top
