BFV S31-368/3PJ DN50 12BAR PN10/16 LUG

CONC. EDI/ALBR/SS416/FKM-VITON DD10X14 F07

På lager : 1 stk SKU: BRA003110
+
Category:

Beskrivelse

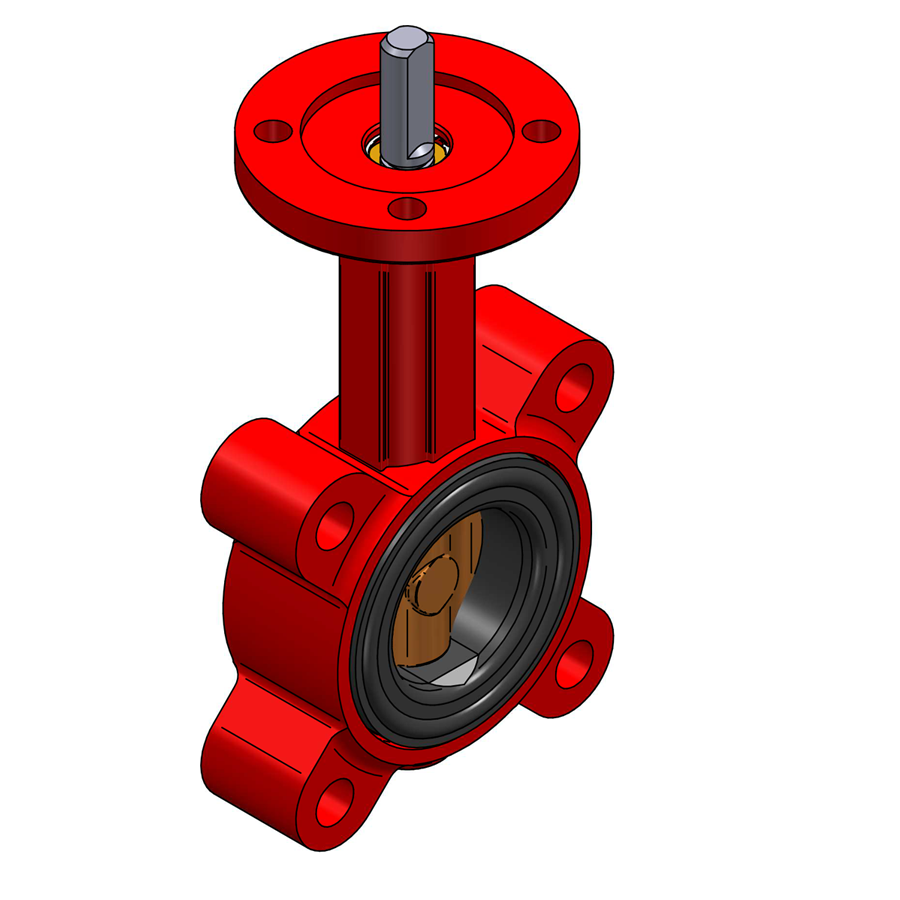

BRA003110 is Lug, Concentric Butterfly Valve with Size of 2in – 50mm, 12 bar pressure rating and PN 10/16 flange. Body Material Ductile Iron GGG40, Disc Material Aluminum Bronze ASTM B148, Stem Material Stainless Steel ASTM A351 CF8M, Seat Material Rubber-based Viton.

Download Drawing
Download Brochure
Download Technical manual EN

Tilleggsinformasjon

Size

Valve Type

Pressure Rating

Connection

Flange Drilling

Body Material

Body Material Std.

Face To Face Distance (Mm)

Trim Material

Trim Material Std.

Spindle Material

Spindle Material Std.

Seat Material Std.

Features

Sector

Serie

Spindle Top

Spindle Top Size

Top
