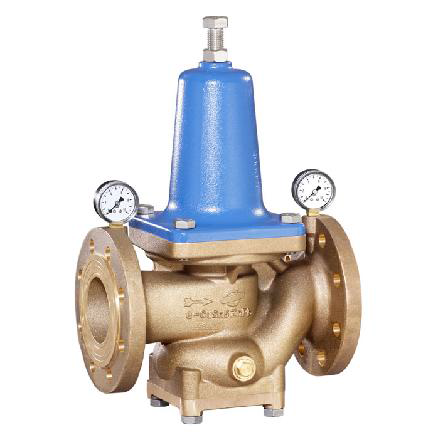

RED. VALVE G4 2042 BSP SCREWED 1/2″

Name: RED. VALVE G4 2042 BSP SCREWED 1/2"
SKU: BAI00050
Availability: InStock

BRONZE BODY/ST ST TRIM

På lager : 2 stk SKU: BAI00050

Beskrivelse

BAI00050 is 1/2in – 15mm Size Pressure Reducing Valve. BAI00050 has BSP Connection. Body is made of Bronze.

Size	15mm – 1/2"
Connection	BSP
Body Material	Alu Brz / Copper Alloys
Body Material Std.	Bronze
Face To Face Distance (Mm)	105
Bonnet Material	Alu Brz / Copper Alloys
Bonnet Material Std.	Bronze
Certificates	PED
Inlet Pressure	35 bar
Max Temperature	260°C
Medium	Steam/Air/Gas (Fine)/Oxygen & Methane
Outlet Pressure	0.07-21 bar
