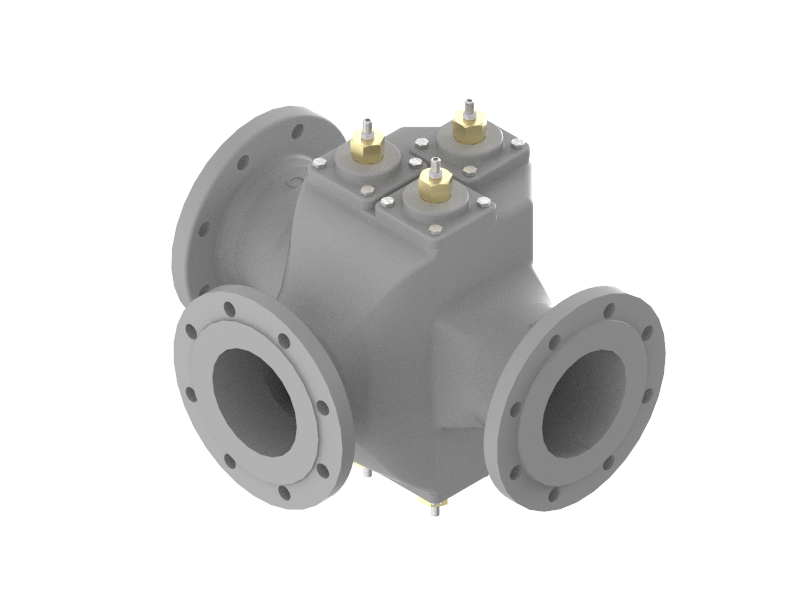

3-WAY TEMP.REG. CONTROL VALVE 226 DN125 PN16

3-WAY TEMP.REG. CONTROL VALVE 226 DN125 PN16

EN JL 1040 (GG25) SET POINT 85

På restordre SKU: AKO808651

Category: Reguleringsventiler

Beskrivelse
Spesifikasjon

Beskrivelse

SERIE 226.0121-125-082/SET POINT 85

Download Drawing
Download Datasheet

Tilleggsinformasjon

Size	125mm – 5"
Valve Type	3-Way-Temperature Regulator
Pressure Rating	16 bar
Connection	Flanged
Flange Drilling	PN16
Body Material	Cast Iron
Body Material Std.	GG 25
Face To Face Distance (Mm)	489
Certificates	DNV
Differential Pressure	16 bar
Max Temperature	120°C
